Capistranoでぺらいち未満のWebサイトをデプロイしてみます
今日はRubyで書かれたビルド・デプロイ作業の自動化フレームワークのCapistranoにさわってみます。
Capistranoでできること
最初に、入門 Capistrano 3 ~ 全ての手作業を生まれる前に消し去りたいを読めばいいという話ではあるんですが、Capistranoでできることを手短にまとめておきます。
- ビルド作業で共通で使う設定を定義する
set :xxx, value_of_xxx
と書いておけば、setした後続のtaskの中でfetch :xxx
と書いてその値を参照できる
- ビルドの際に行う作業をtaskとして定義する
- dockerイメージのビルドなど、他のビルド作業でも利用できる作業をライブラリとして切り出せる。切り出されたライブラリの中にはgemなどの形で配布されているものもある
after_task => :before_task
などの記法でタスク間の依存関係が指定できるafter_task => :before_task
で:after_task
を行う前に:before_task
を行う必要がある、依存関係の指定before task_a, task_b
,after task_b, task_a
でtask_b
の前にtask_a
を行う指定(task_bの実行にtask_aが必要といったタスク間に依存関係はない)
今日やること
- nginxで
ホスト名/
にアクセスしたらHTMLのページを返す単純なWebサイトのデプロイ - デプロイ先はEC2
- (たぶん必要ないかもですが)勉強用にデプロイ前後でnginxの再起動を行う
という内容でCapistranoの設定ファイルを書いて動かしてみます。
設定ファイルを動かしているCapistranoのバージョンは 3.11.0
で、書く内容の設定ファイルのイメージはざっくりと以下です。
# config/deploy.rb # ローカルホストで行う設定を書く # HTMLのソースコードを取得 # ソースコードをアップロードのためにzipに固める
# config/deploy/production.rb # デプロイ先のサーバでおこなう設定を書く # EC2サーバの設定 # htmlファイルのzipのアップロード & 解凍 # nginxの停止・起動
TL;DR
下にも書いたんですが、今日やったことのまとめです。
- GitHubのリポジトリからソースコードを取ってくる
- ブランチの指定はまだ
config/deploy/#{environment}.rb
にserver
を書いてデプロイ先のサーバを指定- deploy_to でデプロイ先のサーバ上のどこのディレクトリにアップロードするかを指定
on roles(:role)
でリモートのサーバで実施するコマンド,run_locally
でローカルサーバで実行するタスクを書くtask :a => :b
で:a
を実行するときはその前に:b
を実行するという指定ができる
実際手を動かしたメモ
Capistranoのインストールと設定ファイルの生成
$ gem install capistrano $ cap --version Capistrano Version: 3.11.0 (Rake Version: 12.3.1) $ cap install mkdir -p config/deploy create config/deploy.rb create config/deploy/staging.rb create config/deploy/production.rb mkdir -p lib/capistrano/tasks create Capfile Capified $ tree . . ├── Capfile ├── config │ ├── deploy │ │ ├── production.rb │ │ └── staging.rb │ └── deploy.rb ├── html │ └── index.html# デプロイ対象のHTML └── lib └── capistrano └── tasks
HTMLのソースコードを取得
デプロイ対象のHTML含めて先ほど表示したファイルをGitHubのプライベートリポジトリで管理することにして、デプロイ時はプライベートリポジトリからソースコードを取ってくることにします。
# config/deploy.rb # config valid for current version and patch releases of Capistrano lock "~> 3.11.0" set :application, "capistrano_experiment" set :repo_url, "git@github.com:woshidan/capistranotest.git" task :download do run_locally do # run_locally do; ... end でローカルマシン(今回は自分のPC)上で実行するコマンドを書く. run_locally ブロックと呼ぶ info "downloading master branch source from GitHub." # info, warn... などでログレベルに応じたログを出力できる execute "git checkout master && git pull origin master" # タスク内でコマンドを実行するときは、execute "コマンド" で書くkaku end end
話を単純にするため、作業用のディレクトリではすでにgitのリポジトリをcloneしてきていて、masterブランチのみをdeploy対象とするものとします*2。
この時点ではタスクを定義しているだけで、deployの際にdownloadタスクを実行すると設定していないので cap production deploy
しても何も起こりませんし、 downloading master branch source from GitHub.
のログも log/capistrano.log
に出力されません。
ソースコードをアップロードのためにzipに固める
サーバにアップロードする必要のあるファイル、今回は量はそこまでするほど量はないですが、index.htmlをzipに固めるタスクです。
# config/deploy.rb task :archive => :download do run_locally do info "archive html directory to zip" execute "zip -r html.zip html" end end
:archive => :download
の部分は :archive
タスクは :download
タスクをやった後にしてください、ということですね。
EC2のインスタンスを立ち上げて、nginxを入れる
nginxで静的ファイルを表示するサイトを作る予定と書いたので、適当なEC2インスタンスを立ち上げて以下のコマンドでnginxを入れておく。 セキュリティグループは雑にマイIP*3からのみSSH, HTTP, HTTPSアクセスを許可。
# 参考: http://d.hatena.ne.jp/january/20130819 $ sudo yum install nginx $ which nginx # インストール確認 /usr/sbin/nginx $ sudo nginx # nginx起動 $ ps -ef | grep nginx # masterプロセスとworkerプロセスの起動を確認 root 2759 1 0 09:27 ? 00:00:00 nginx: master process nginx nginx 2760 2759 0 09:27 ? 00:00:00 nginx: worker process ec2-user 2762 2686 0 09:27 pts/0 00:00:00 grep --color=auto nginx

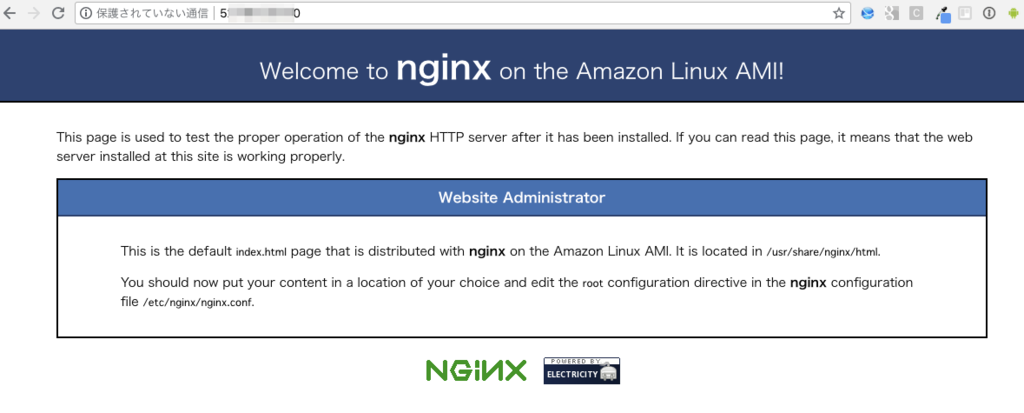

ホストのアドレスにアクセスすると
のようなページが出てnginxが起動していることが確認できる。
/etc/nginx/nginx.conf
をみると、
http { log_format main '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"'; access_log /var/log/nginx/access.log main; sendfile on; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; include /etc/nginx/mime.types; default_type application/octet-stream; # Load modular configuration files from the /etc/nginx/conf.d directory. # See http://nginx.org/en/docs/ngx_core_module.html#include # for more information. include /etc/nginx/conf.d/*.conf; index index.html index.htm; server { listen 80 default_server; listen [::]:80 default_server; server_name localhost; root /usr/share/nginx/html;
とあり、
$ less /usr/share/nginx/html/index.html | grep Welcome <h1>Welcome to <strong>nginx</strong> on the Amazon Linux AMI!</h1>
と確かめてみると、と表示されたページのソースコードの所在が確認できたので、今日のところは server
ディレクティブの root
を /var/www
に変更し、 /var/www
以下に index.html
をアップロードすることを目標にする。
# 変更後のconfファイル index index.html index.htm; server { listen 80 default_server; listen [::]:80 default_server; server_name localhost; root /var/www; # ここを変えた # root /usr/share/nginx/html; # Load configuration files for the default server block. include /etc/nginx/default.d/*.conf; location / { } # redirect server error pages to the static page /40x.html # # error_page 404 /404.html; # 40xなどを/var/wwwに用意するのが面倒なので一旦コメントアウト # location = /40x.html { # } # redirect server error pages to the static page /50x.html # # error_page 500 502 503 504 /50x.html; # location = /50x.html { # }
また、デプロイが完了するまで仮に表示するページを用意しておき
[ec2-user@ip-172-31-27-79 ~]$ sudo mkdir /var/www [ec2-user@ip-172-31-27-79 ~]$ sudo touch /var/www/index.html [ec2-user@ip-172-31-27-79 ~]$ sudo vim /var/www/index.html
再起動して設定が変更されたことを確認しておく。
[ec2-user@ip-172-31-27-79 ~]$ sudo service nginx stop Stopping nginx: [ OK ] [ec2-user@ip-172-31-27-79 ~]$ sudo service nginx start Starting nginx: [ OK ]
EC2サーバの設定を書く
さて、デプロイ先のサーバができたところでCapistranoの設定ファイルにデプロイ先のサーバの設定を書いていく。
# config/deploy/production.rb # server ホスト名(アクセスできるものだったらよいのでIPアドレス) # user ログインユーザ # roles あとでリモートホストで行うタスクを設定するとき on roles(:web) のように使う、デプロイ作業用グループ server "5x.xxx.xxx.x0", user: "ec2-user", roles: %w{web}
そういえば、 config/deploy/production.rb
のようなデプロイ先のステージの設定ファイルを用意すると
$ cap production download 00:00 download downloading master branch source from GitHub. 01 git checkout master && git pull origin master 01 Already on 'master' 01 From https://github.com/woshidan/capistranotest 01 * branch master -> FETCH_HEAD 01 Already up-to-date. ✔ 01 woshidan@localhost 1.083s # task :archive => :download do $ cap production archive 00:00 download downloading master branch source from GitHub. 01 git checkout master && git pull origin master 01 Already on 'master' 01 From https://github.com/woshidan/capistranotest 01 * branch master -> FETCH_HEAD 01 Already up-to-date. ✔ 01 woshidan@localhost 1.097s 00:01 archive archive html directory to zip 01 zip -r html.zip html 01 updating: html/ (stored 0%) 01 updating: html/index.html (deflated 20%) ✔ 01 woshidan@localhost 0.042s
のように、設定したタスクが実行できるようになる。
htmlファイルのzipのアップロード & 解凍
今回のWebサイトについて、具体的なデプロイ作業とは、nginxで表示するhtmlファイルのzipのアップロードと、アップロードしたファイルの解凍・配置となる。その作業を行うタスクを書いていく。
Capistranoでファイルをアップロードする際は upload! ローカルファイルへのパス, アップロード先サーバ上のパス
を利用するが、その設定は
# config/deploy.rb task :deploy => :archive do on roles(:web) do upload! "./html.zip", "/home/ec2-user/deploy_target_dir" # リモートホスト上の /home/ec2-user/deploy_target_dir へ ローカルホストの ./html.zip をアップロード end end
でありますが、そのままだと
00:01 git:wrapper 01 mkdir -p /tmp (Backtrace restricted to imported tasks) cap aborted! SSHKit::Runner::ExecuteError: Exception while executing as ec2-user@5x.xxx.xxx.x0: Authentication failed for user ec2-user@5x.xxx.xxx.x0 Caused by: Net::SSH::AuthenticationFailed: Authentication failed for user ec2-user@5x.xxx.xxx.x0 Tasks: TOP => deploy:check => git:check => git:wrapper (See full trace by running task with --trace) The deploy has failed with an error: Exception while executing as ec2-user@5x.xxx.xxx.x0: Authentication failed for user ec2-user@5x.xxx.xxx.x0 ** DEPLOY FAILED ** Refer to log/capistrano.log for details. Here are the last 20 lines:
のようにエラーになってしまうので、sshのオプションを config/deploy/production.rb
(デプロイ先の設定を書くファイル) に追加します。
# config/deploy/production.rb server "5x.xxx.xxx.x0", user: "ec2-user", roles: %w{web} set :ssh_options, keys: %{./capistrano_test.pem}, auth_methods: %w{publickey}
すると、今度は
DEBUG [0691849d] Command: ( export GIT_ASKPASS="/bin/echo" GIT_SSH="/tmp/git-ssh-capistrano_experiment-production-woshidan.sh" ; /usr/bin/env git ls-remote git@github.com:woshidan/capistranotest.git HEAD ) DEBUG [0691849d] /usr/bin/env: DEBUG [0691849d] git DEBUG [0691849d] : No such file or directory
のようなメッセージで失敗しますが、これはデプロイ先のサーバにgitがない、という意味なのでデプロイ先のサーバに
$ sudo yum install git
のようにgitをインストールします*4。
実は、Capfileを cap install
から何も変更せずに進めた場合、
task :deploy => :archive do on roles(:web) do upload! "./html.zip", "/var/www" # リモートホスト上の /var/www へ ローカルホストの ./html.zip をアップロード end end
の deploy
のタスクを開始した時点で :deploy_to
に指定したディレクトリ、または /var/www/#{application}
のディレクトリで git clone
を行なっているようです。
task :deploy => :archive do end
のように :deploy
タスクの中身を空にしても
00:00 archive archive html directory to zip 01 zip -r html.zip html 01 updating: html/ (stored 0%) 01 updating: html/index.html (deflated 20%) ✔ 01 woshidan@localhost 0.042s ✔ 02 ec2-user@5x.xxx.xxx.x0 0.421s 00:01 git:wrapper 01 mkdir -p /tmp ✔ 01 ec2-user@5x.xxx.xxx.x0 0.092s Uploading /tmp/git-ssh-capistrano_experiment-production-woshidan.sh 100.0% 02 chmod 700 /tmp/git-ssh-capistrano_experiment-production-woshidan.sh ✔ 02 ec2-user@5x.xxx.xxx.x0 0.092s 00:01 git:check 01 git ls-remote git@github.com:woshidan/capistranotest.git HEAD 01 b132c31d1fc37f08848d8b860bf57f20ad4ef635 HEAD ✔ 01 ec2-user@5x.xxx.xxx.x0 1.774s 00:03 deploy:check:directories 01 mkdir -p /home/ec2-user/upload_prepare_dir/shared /home/ec2-user/upload_prepare_dir/releases ✔ 01 ec2-user@5x.xxx.xxx.x0 0.132s 00:04 git:clone The repository mirror is at /home/ec2-user/upload_prepare_dir/repo 00:04 git:update 01 git remote set-url origin git@github.com:woshidan/capistranotest.git ✔ 01 ec2-user@5x.xxx.xxx.x0 0.093s 02 git remote update --prune 02 Fetching origin 02 From github.com:woshidan/capistranotest 02 f4e5e6b..b132c31 master -> master ✔ 02 ec2-user@5x.xxx.xxx.x0 2.188s 00:06 git:create_release 01 mkdir -p /home/ec2-user/upload_prepare_dir/releases/20180913134338 ✔ 01 ec2-user@5x.xxx.xxx.x0 0.100s 02 git archive master | /usr/bin/env tar -x -f - -C /home/ec2-user/upload_prepare_dir/releases/20180913134338 ✔ 02 ec2-user@5x.xxx.xxx.x0 0.096s 00:07 deploy:set_current_revision 01 echo "b132c31d1fc37f08848d8b860bf57f20ad4ef635" > REVISION ✔ 01 ec2-user@5x.xxx.xxx.x0 0.092s 00:07 deploy:symlink:release 01 ln -s /home/ec2-user/upload_prepare_dir/releases/20180913134338 /home/ec2-user/upload_prepare_dir/releases/current ✔ 01 ec2-user@5x.xxx.xxx.x0 0.092s 02 mv /home/ec2-user/upload_prepare_dir/releases/current /home/ec2-user/upload_prepare_dir ✔ 02 ec2-user@5x.xxx.xxx.x0 0.090s 00:07 deploy:cleanup Keeping 5 of 6 deployed releases on 5x.xxx.xxx.x0 01 rm -rf /home/ec2-user/upload_prepare_dir/releases/20180913112304 ✔ 01 ec2-user@5x.xxx.xxx.x0 0.118s 00:07 deploy:log_revision 01 echo "Branch master (at b132c31d1fc37f08848d8b860bf57f20ad4ef635) deployed as release 20180913134338 by woshidan" >> /home/ec2-user/upload_prepare_dir/r… ✔ 01 ec2-user@5x.xxx.xxx.x0 0.098s
git clone
が行われています。
# config/deploy.rb set :deploy_to, "/home/ec2-user/upload_prepare_dir" task :deploy => :archive do on roles(:web) do upload! "./html.zip", "/home/ec2-user/deploy_target_dir" # リモートホスト上の /home/ec2-user/deploy_target_dir へ ローカルホストの ./html.zip をアップロード end end
とした場合、 /home/ec2-user/upload_prepare_dir
にてgit cloneやgit cloneしてきたコードのバージョン管理用のディレクトリを作成して、 upload!
では、そのディレクトリから2つめに指定したディレクトリへファイルをコピーしているようです*5。
[ec2-user@ip-172-31-27-79 ~]$ pwd /home/ec2-user $ tree . . ├── deploy_target_dir │ └── html.zip ├── html │ └── index.html └── upload_prepare_dir ├── current -> /home/ec2-user/upload_prepare_dir/releases/20180913134913 ├── releases │ └── 20180913134913 │ ├── Capfile │ ├── config │ │ ├── deploy │ │ │ ├── production.rb │ │ │ └── staging.rb │ │ └── deploy.rb │ ├── html │ │ └── index.html │ └── REVISION ├── repo │ ├── branches │ ├── config │ ├── description │ ├── FETCH_HEAD │ ├── HEAD │ ├── hooks │ │ ├── applypatch-msg.sample │ │ ├── commit-msg.sample │ │ ├── post-update.sample │ │ ├── pre-applypatch.sample │ │ ├── pre-commit.sample │ │ ├── prepare-commit-msg.sample │ │ ├── pre-push.sample │ │ ├── pre-rebase.sample │ │ ├── pre-receive.sample │ │ └── update.sample │ ├── info │ │ └── exclude │ ├── objects │ │ ├── info │ │ └── pack │ │ ├── pack-455700f6724c559c3d0264e92c2888bf6b191610.idx │ │ └── pack-455700f6724c559c3d0264e92c2888bf6b191610.pack │ ├── packed-refs │ └── refs │ ├── heads │ └── tags ├── revisions.log └── shared 20 directories, 27 files
上は実際にデプロイ先のサーバで tree .
してみたところ。
アップロードした zip ファイルを解凍して /var/www/index.html
に配置するところまで追加*6。
# config/deploy.rb task :deploy => :archive do on roles(:web) do execute "mkdir -p /home/ec2-user/deploy_target_dir" upload! "./html.zip", "/home/ec2-user/deploy_target_dir" # リモートホスト上の /home/ec2-user/deploy_target_dir へ ローカルホストの ./html.zip をアップロード execute "cd /home/ec2-user/deploy_target_dir && unzip -o /home/ec2-user/deploy_target_dir/html.zip" execute "sudo cp /home/ec2-user/deploy_target_dir/html/index.html /var/www/index.html" end end
nginxの停止・再起動
今回のデプロイには変更ないのだけどデプロイ時にアプリケーションを再起動する、というのはよくあることだから、素振りとしてnginxを再起動しておく。
# config/deploy.rb task :deploy => :archive do on roles(:web) do execute "mkdir -p /home/ec2-user/deploy_target_dir" upload! "./html.zip", "/home/ec2-user/deploy_target_dir" # リモートホスト上の /home/ec2-user/deploy_target_dir へ ローカルホストの ./html.zip をアップロード execute "cd /home/ec2-user/deploy_target_dir && unzip -o /home/ec2-user/deploy_target_dir/html.zip" execute "sudo cp /home/ec2-user/deploy_target_dir/html/index.html /var/www/index.html" # 以下を追加 execute "sudo service nginx stop" execute "sudo service nginx start" end end
デプロイした結果を確認できたのでよさそう。
今日はcapistranoを使って
- GitHubのリポジトリからソースコードを取ってくる
- ブランチの指定はまだ
config/deploy/#{environment}.rb
にserver
を書いてデプロイ先のサーバを指定- deploy_to でデプロイ先のサーバ上のどこのディレクトリにアップロードするかを指定
on roles(:role)
でリモートのサーバで実施するコマンド,run_locally
でローカルサーバで実行するタスクを書くtask :a => :b
で:a
を実行するときはその前に:b
を実行するという指定ができる
あたりの復習をして、さぼったなぁと思うことは
- git pushしていれば、いまいるブランチをデプロイできるようにする
- deploy ユーザーを用意して直接デプロイ対象のディレクトリへファイルをアップロードする
- 静的ファイルのアップロードではなくもう少し動作するアプリをdeployする
- ビルドサーバを用意して、ビルドサーバからだけアップロードできるようにする
- プラグインの詳細
ですが、また今度でいいかなと思います。
とりあえず、現場からは以上です。
*1:デプロイプロセス全体としてはアップロードに見える?
*2:ビルドサーバとかで作業を行うならこういうわけにもいきませんが、今日はcapistranoの勉強ということにして、その辺はまた別途やろうと思います
*3:AWSはセキュリティグループのIPアドレスの設定でマイIPを設定するとAWSに接続しているISPが割り振る範囲のIPを入力してくれるみたい
*4:参考: https://qiita.com/himatani/items/87d54752021879e1ec89
*5:Capfileを何もいじっていなかったので https://github.com/capistrano/capistrano/blob/220db8fabab15b9d5cd5c9ab1f2744e0aa346eb0/lib/capistrano/scm/tasks/git.rake#L1-L2 や Capfile 中の install_plugin Capistrano::SCM::Git あたりが原因と思われます...
*6:実際はnginxで公開するディレクトリ /var/www/ にアップロドして、 /var/www/current/index.html あたりをnginxで公開するパスとしたほうがよさそう。そのためのdeployユーザの設定などがあるが今日は時間がないのでこういう感じで
*7:デプロイプロセス全体としてはアップロードに見える?
